35 – 40 bar, air & nitrogen (DS-series)

Air-cooled high-pressure compressors in the DS-series (air & nitrogen) in the pressure range 35 – 40 bar – for heavy-duty operation in shipping

Direct-coupled BAUER medium-pressure compressors for shipping: Ideally dimensioned for installation in ships where performance requirements are very high
Choose electric or diesel drive: Designed and developed for a wide variety of applications in the fields of civil shipping, marine and industry. Boasts outstanding performance values
Low unit centre of gravity, conventional control: Ideal for broad universal use and long-term service in all manner of types of ship
Compact dimensions: The space-saving, low-maintenance and reliable solution – even for smaller machine rooms

The air-cooled direct-coupled BAUER compressors in the DS-series meet the traditionally very challenging requirements encountered in industrial shipping and marine applications.

Used all over the world in professional environments to generate the starting air for ships’ engines, they impress with their excellent power reserves, a very low unit centre of gravity and compact dimensions – optimised for space-saving installation in machine and equipment rooms wherever space is at a premium.

Outstanding quality, reliability, operational safety, low maintenance, modularity and cost efficiency make them the first choice compressor generation for owners of ships the world over.

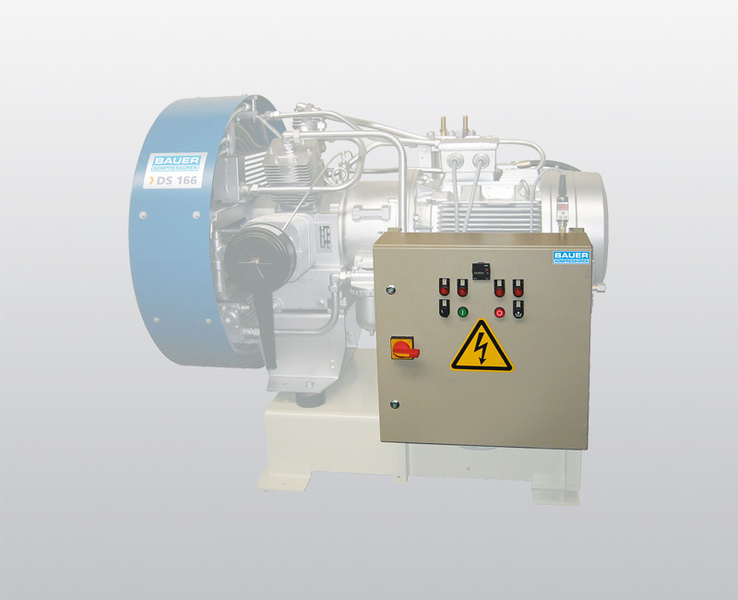

Compressor control
The electrical control system can be relied upon to both monitor and control all essential compressor functions. Another important benefit: thanks to the use of standard components, the ready supply of spare parts can be relied upon at all times – something that is crucial for mobile applications the world over.

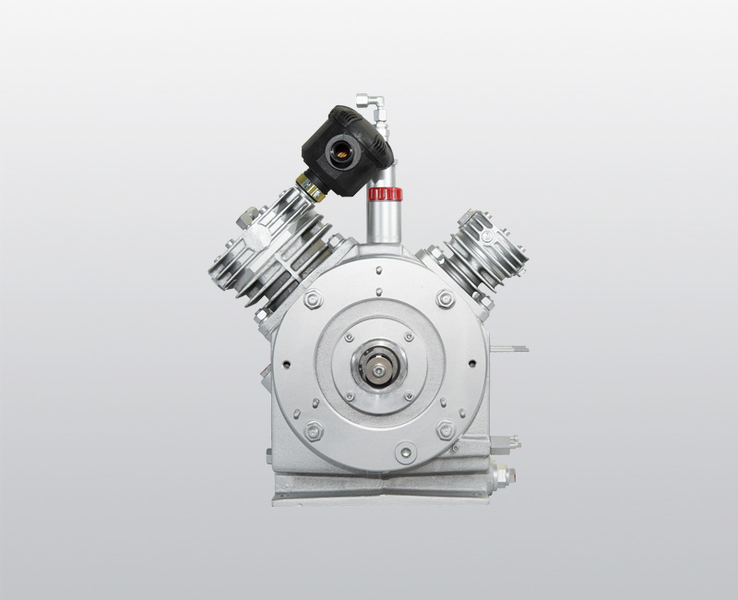

Compressor block
The low-maintenance direct coupling results in a very compact unit design with low centre of gravity, providing the ideal solution for the demanding requirements of offshore applications.

DS-series medium-pressure compressor (air & nitrogen), 40 bar
Type designation	Effective free air delivery ¹			Frequency	Max. operating pressure		Number of compressor stages	Speed approx.	Motor output	Power consumption ²	Net weight approx.
	l/min	m³/h	cfm	Hz	bar	psig		rpm	kW	kW	kg	lbs
DS 14-4	200	12	7	50	40	580	2	1440	4	3.3	200	440
DS 14-4	230	13.8	8	60	40	580	2	1720	4.4	3.9	200	440
DS 17-4	245	14.7	8.6	50	40	580	2	1440	4	3.7	200	440
DS 17-4	280	16.8	9.8	60	40	580	2	1720	4.4	4.4	200	440
DS 35-10	500	30	17.6	50	40	580	2	1450	7.5	7.5	350	770
DS 35-10	575	34.5	20.2	60	40	580	2	1740	11	9	350	770
DS 70-18.5	990	594	34.8	50	40	580	2	1440	15	14.9	710	1565
DS 70-18.5	1140	68.4	40	60	40	580	2	1720	20.4	17.9	745	1640
DS 76-18.5	1100	66	38.6	50	40	580	3	1450	18.5	17	660	1455
DS 76-18.5	1265	76	44.4	60	40	580	3	1740	20.4	20.3	660	1455
DS 166-37	2400	144	85	50	40	580	3	1470	37	31	805	1775
DS 166-37	2760	166	97	60	40	580	3	1760	40.7	37.2	805	1775
DS 181-45	3020	181	107	50	40	580	3	1470	45	40	825	1820
DS 181-45	—	—	—	60	40	580	3	—	—	—	825	1820

¹ Measured according to DIN 1945, tolerance ±5%
² Power consumption at maximum final pressure

Description

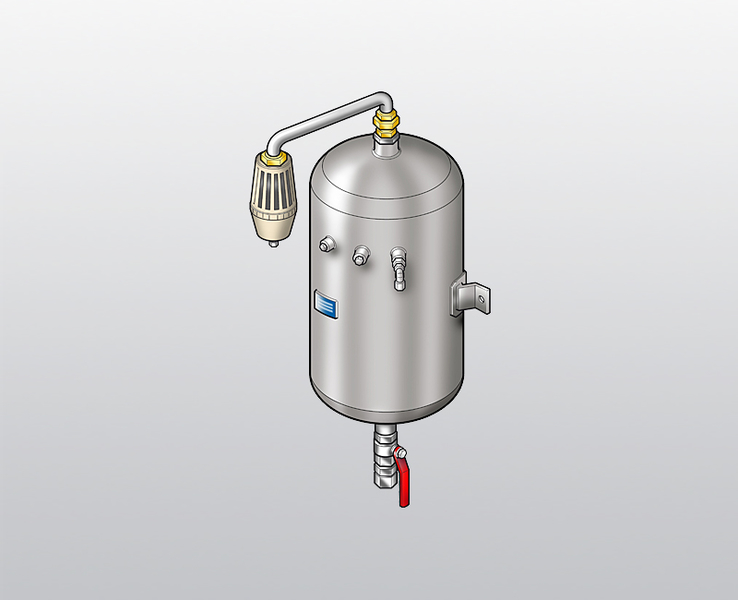

Condensate vessel with silencer for wall mounting

Condensate vessel
Made from metal. For wall mounting. Capacity 60 or 100 litres, featuring integrated manual drain cock.

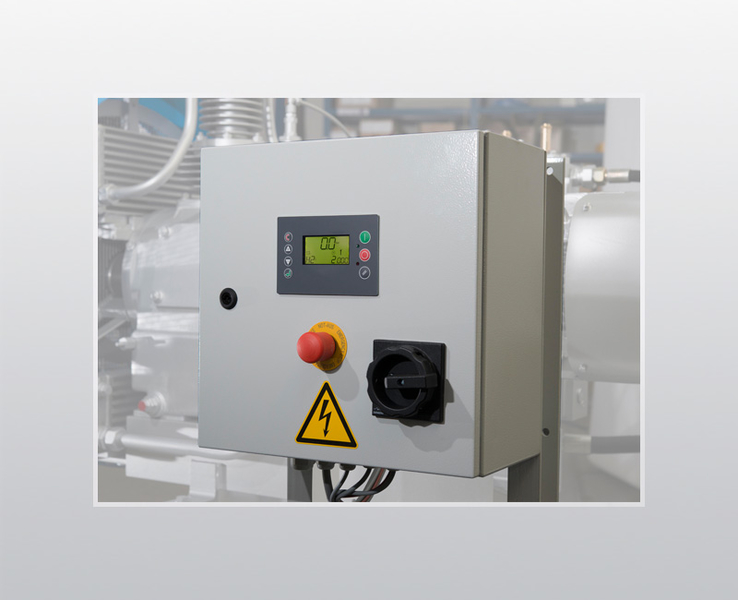

CMC compressor control
Optional compressor control for fully automatic operation. With illuminated LCD for effective monitoring and control of working parameters. Featuring service display, access to fault history, RS485 interface, etc.
